ETX/XTX Press-in Mode

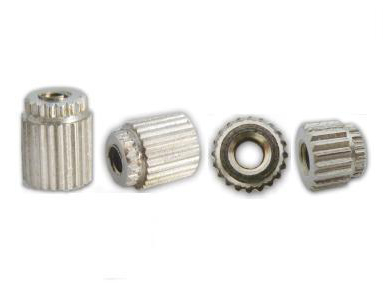

ETX / XTX Carrier Board Standoff
ORDERING INFORMATION
Thread Type
|
EFCO P/N
|
Thread Size
|
Head Length
|
Suggested PCB Hole Size
|
Board to Board Height
|
|
ECM00247-L
|
M2.5
|
3mm
|
Ø4.2
|
3mm
|
|
ECM00593-L
|
M2.5
|
5mm
|
Ø4.2
|
5mm
|
|
ECM00515-L
|
M2.5
|
9.5mm
|
Ø4.2
|
9.5mm
|
|
ECM00516-L
|
M3.0
|
3mm
|
Ø4.2
|
3mm
|
Bore Hole Type
|
EFCO P/N
|
Thread Size
|
Head Length
|
Suggested PCB Hole Size
|
Board to Board Height
|
|
ECM00517-L
|
Ø2.7
|
3mm
|
Ø4.2
|
3mm
|
|
ECM00718-L
|
Ø2.7
|
3mm
|
Ø5.47
|
3mm
|
|
ECM00592-L
|
Ø2.7
|
5mm
|
Ø4.2
|
5mm
|
|
ECM00518-L
|
Ø2.7
|
9.5mm
|
Ø4.2
|
9.5mm
|
|
ECM00519-L
|
Ø2.7
|
3mm
|
Ø4.2
|
3mm
|
